Vertical Food Packing machine Volumetric Cup Filling Machine Sugar 1kg Salt Packaging Bagger
Home » Turkey Solution » Volumetric Cups Filler » Vertical Food Packing machine Volumetric Cup Filling Machine Sugar 1kg Salt Packaging Bagger
Share to:

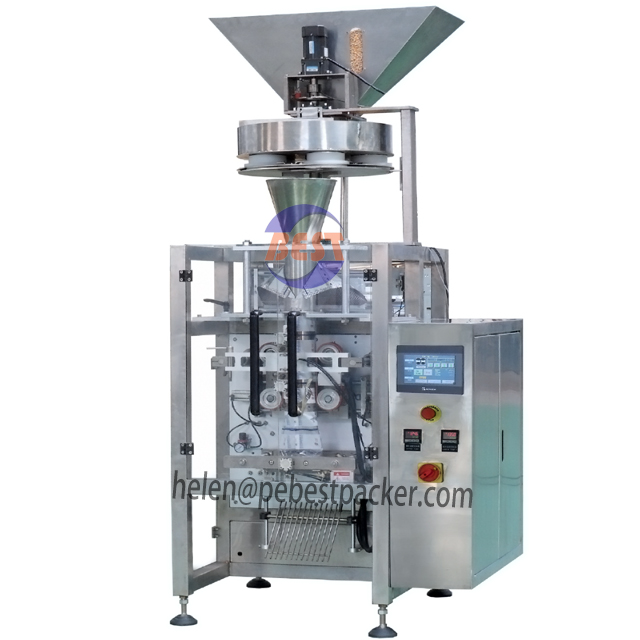

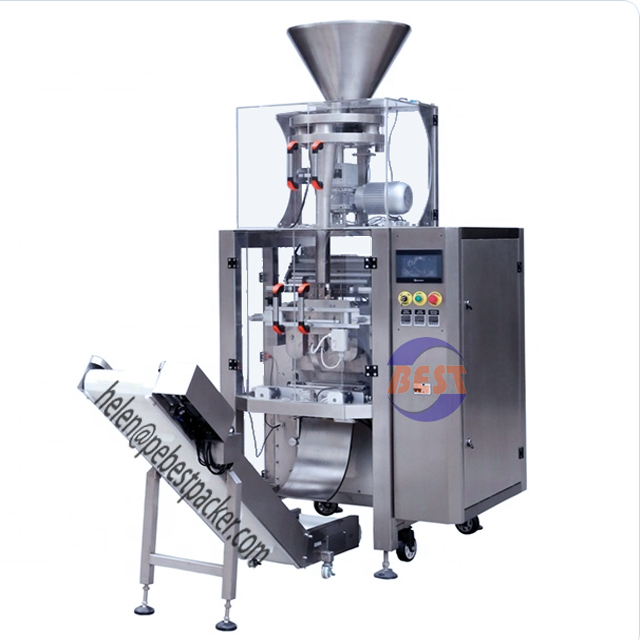

Vertical Food Packing machine Volumetric Cup Filling Machine Sugar 1kg Salt Packaging Bagger

Vertical Volumetric Cup Filling Machine + VFFS is special designed for Salt. It made of Stainless steel 316 and protect cover of the machine. It is also suitable for automatic packaging granule like all kinds of sweets, chocolate, biscuits, peanuts, nuts, rice, grain, seeds, pistachio, coffee beans, lima beans, sugar, salt and desiccant.

Quantity:
  • C4P520
  • Baixida
  • C4P520

Vertical Food Packing machine Volumetric Cup Filling Machine Sugar 1kg Salt Packaging Bagger

Vertical Volumetric Cup Filling Machine + VFFS is special designed for Salt. It made of Stainless steel 316 and protect cover of the machine. It is also suitable for automatic packaging granule like all kinds of sweets, chocolate, biscuits, peanuts, nuts, rice, grain, seeds, pistachio, coffee beans, lima beans, sugar, salt and desiccant.

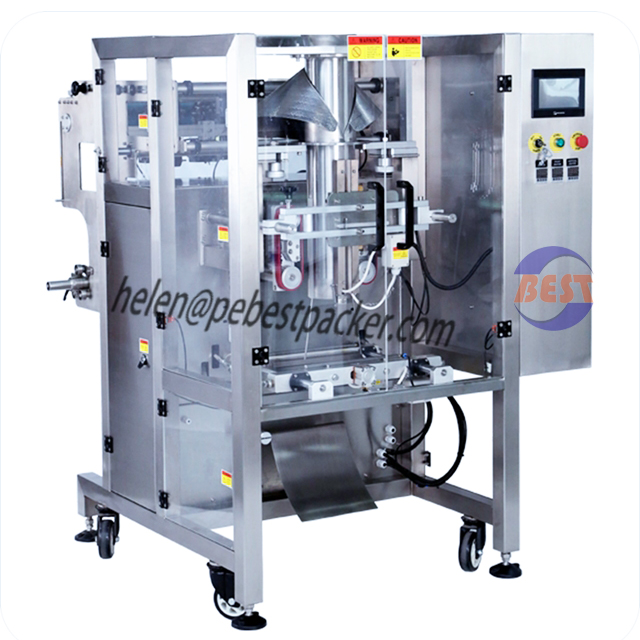

VFFS Features:

 Color displayed Touch Panel + Stable Reliable PLC with Dual axis output high accuracy, thus the Bagging machine can final all steps in one-time, including bag Forming, filling, sealing, printing and cutting.
 Air and electric control are separated, less noisy and more stable.
 Panasonic Servo to drive pulley, two belts working at the same time, offering enough friction to pull film, less sliding, nicer bag and the belts will be longer life.
 External Film Holder assemblies with Screw inside, the film roll is fixed in center mandatory, no need extra adjustment, saving time.
 Adopts Motor to track the film. Operator can tune and center the film in Touch Panel directly. Automatic Tracking system is available to choose too.
 Most of electrical parts and pneumatic parts are protected, avoid dusty to damage the parts.
 Whole machine is made of SUS#304, including thick enough Stainless-steel tube and film bracket. Not SUS#201 or covered Iron. Thus the machine is stronger, longer life and more rustproof.
SPECIFICATIONS OF VFFS P520.1
Filling machine

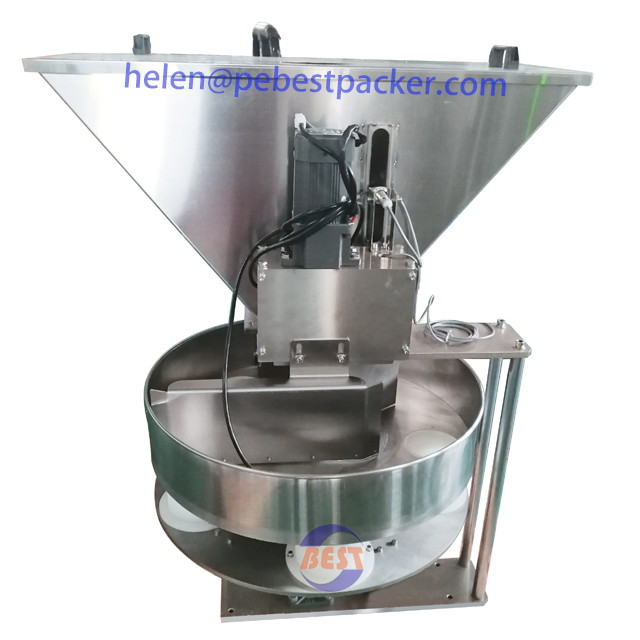

Single Cup/4 CUPS Volumetric Cups Filler
Weight Range
10-2000ml
Speed
15-50 bags/min (Depends on bag size, film feature and spec)
Languages
Default English or Chinese. For else Multiple languages, please specify when ordering.
Air consumption
0.3~0.4 m 3/ min, 0.6 Mpa
Voltage & Power
220V, 4KW
Touch Screen
7 inch Color displayed Touch Screen
Film Material
Laminated film, such as OPP/CPP, OPP/PE, MST/PE, PET/PE, etc
Film Thickness
50~100μm
Film width
520mm Max.
Finished bag length
50-300 mm
Finished bag width
85-250 mm
7Machine frame
Stainless steel 304
Net weight
500kgs
Machine dimension
1500*1250*1680mm (LxWxH)
