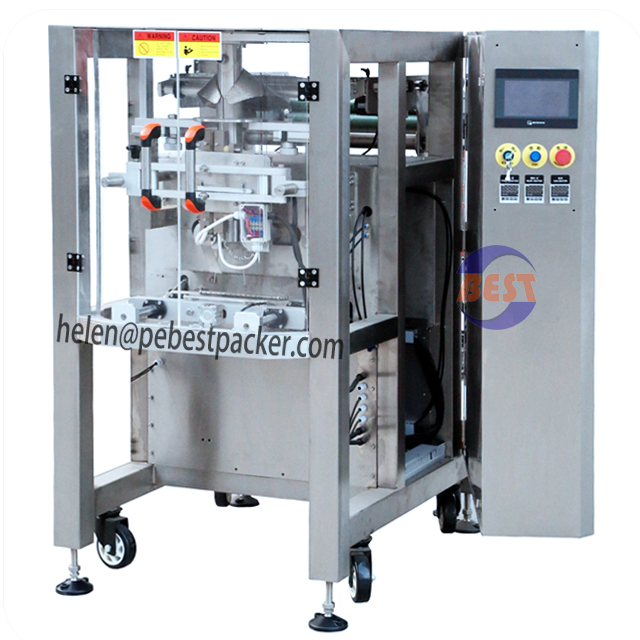

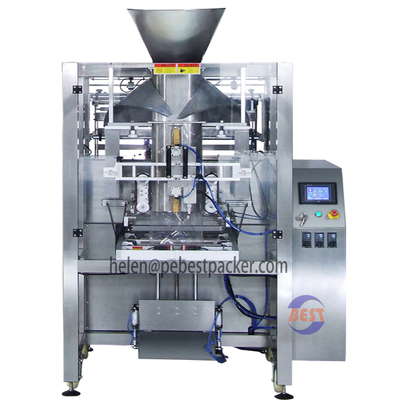

V800.1 Auto Sliced Fruit Salad Vegetable Packing Machine Apple Wedges Packing Machine Made In China

Auto Sliced Fruit And Vegetable Packing Machine (VFFS) which makes a three sealing pack. Medium production speed performance up to 70 cycles/min. with an excellent quality/price ratio.
The Auto Sliced Fruit And Vegetable Packing Machine machine has been specifically designed for the wrapping of a wide range of many different products types and focuses on markets where the main requirements are, simplicity, reliability, and easy operation of the machine.

Quantity:
  • V800.1
  • Baixida
  • V800.1

Auto Sliced Fruit  Salad Vegetable Packing Machine Apple Wedges Packing Machine Made In China

VFFS features:
 Color displayed Touch Panel + Stable Reliable PLC with Dual axis output high accuracy, thus the Bagging machine can final all steps in one-time, including bag Forming, filling, sealing, printing and cutting.
 Air and electric control are separated, less noisy and more stable.
 Panasonic Servo to drive pulley, two belts working at the same time, offering enough friction to pull film, less sliding, nicer bag and the belts will be longer life.
 External Film Holder assemblies with Screw inside, the film roll is fixed in center mandatory, no need extra adjustment, saving time.
 Adopts Motor to track the film. Operator can tune and center the film in Touch Panel directly. Automatic Tracking system is available to choose too.
 Most of electrical parts and pneumatic parts are protected, avoid dusty to damage the parts.
 Whole machine is made of SUS#304, including thick enough Stainless-steel tube and film bracket. Not SUS#201 or covered Iron. Thus the machine is stronger, longer life and more rustproof.

SPECIFICATIONS OF Auto Sliced Fruit And Vegetable Packing Machine P800

Speed
15-40 bags/min (Depends on bag size, film feature and spec)
Languages
Default English or Chinese. For else Multiple languages, please specify when ordering.
Air consumption
0.5~0.6 m 3/ min, 0.6 Mpa
Voltage & Power
220V, 5.5KW
Touch Screen
7 inch Color displayed Touch Screen
Film Material
Laminated film, such as OPP/CPP, OPP/PE, MST/PE, PET/PE, etc
Film Thickness
50~100μm
Film width
800mm Max.
Finished bag length
50-480 mm
Finished bag width
160-385 mm
7Machine frame
Stainless steel 304
Net weight
750kgs
Machine dimension
1600xW1500xH2050mm (LxWxH)
