V600C Compact Vertical Packing Machine VFFS Bagger Grated Cheese Wallpaper Paste Flakes
Home » Products » VFFS Packing Machine » Pillow Gusset bag » V600C Compact Vertical Packing Machine VFFS Bagger Grated Cheese Wallpaper Paste Flakes
Share to:

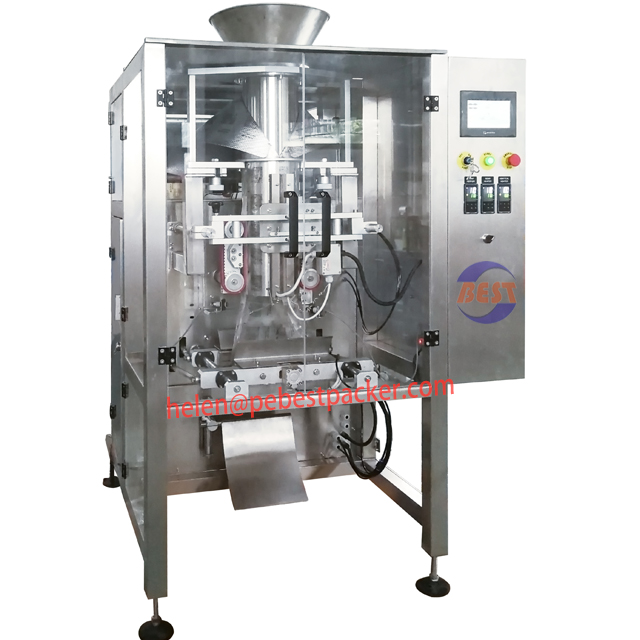

V600C Compact Vertical Packing Machine VFFS Bagger Grated Cheese Wallpaper Paste Flakes

The packing procedures start from a reel of heat-sealed or co-extruded flat sheet film, allow the realization of more complex and different types of bag: from the pillow bag to that with lateral gussets, nipped edges, four sealed edges, square bottom, double square bottom with double upper fold and bag top closable using "open-close" zipper, etc.

Quantity:
  • V600C
  • Baixida
  • V600C

Compact Vertical Packing Machine VFFS Bagger Grated Cheese Wallpaper Paste Flakes

he film pulling system and the closure of the sealing units have servo motors, able to ensure maximum working accuracy and perfect synchronism of movements.

The packing procedures start from a reel of heat-sealed or co-extruded flat sheet film, allow the realization of more complex and different types of bag: from the pillow bag to that with lateral gussets, nipped edges, four sealed edges, square bottom, double square bottom with double upper fold and bag top closable using "open-close" zipper, etc.

The top-quality electronics allow total control regarding the various sealing parameters (temperature, pressure and application time) and determination of package length.

The particular manufacture of the sealing bars, allows them to be disassembled quickly for maintenance interventions and replacement of worn parts.

The operator interface is assured by a large "touch-screen" panel, with easy-to-interpret color graphics.

SPECIFICATIONS OF Vertical Bagger V600C
Speed
15-100 bags/min (Depends on bag size, film feature and spec)
Languages
Default English or Chinese. For else Multiple languages, please specify when ordering.
Air consumption
0.45 m 3/ min, 0.6 Mpa
Voltage & Power
220V, 4.5KW
Touch Screen
7 inch Color displayed Touch Screen
Film Material
Laminated film, such as OPP/CPP, OPP/PE, MST/PE, PET/PE, etc
Film Thickness
50~80μm
Film width
600mm Max.
Finished bag length
50~300 mm
Finished bag width
80~285 mm
Machine frame
Stainless steel 304
Net weight
550kgs
Machine dimension
1600*1260*1480mm (LxWxH)
