Twin Type Packing machine for Cornflakes, Gummy Candy, Extruding Snacks Etc
Home » Products » VFFS Packing Machine » Pillow Gusset bag » Twin Type Packing machine for Cornflakes, Gummy Candy, Extruding Snacks Etc
Share to:

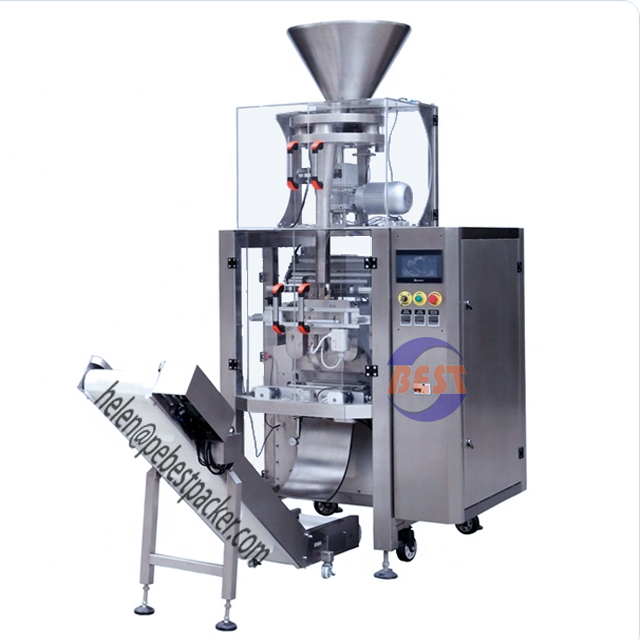

Twin Type Packing machine for Cornflakes, Gummy Candy, Extruding Snacks Etc

Twin Type Vertical Form Fill Seal Machine is versatile for liquids, powders, and solids forms many bag styles and performs flawlessly in dusty or wet environments.
The fast-action jaw boasts 100 bags per minute per each side, thus 200bpm in total when making empty bags. Flexible and functional, this bagger packs incredible speed, efficiency and economy into an ultimate packaging powerhouse!

Quantity:
  • V2520
  • Baixida
  • V2520

Twin Type Packing machine for Cornflakes, Gummy Candy, Extruding Snacks Etc

Twin Type Vertical Form Fill Seal Machine is versatile for liquids, powders, and solids forms many bag styles and performs flawlessly in dusty or wet environments.

Offering a host of bag styles up to 520 mm wide and 300 mm long in a single stroke, the Twin type P2520.2 is a high-performance vertical form fill and seal machine that offers the flexibility of open modular design – at an affordable price. The fast-action jaw boasts 100 bags per minute per each side, thus 200bpm in total when making empty bags. Flexible and functional, this bagger packs incredible speed, efficiency and economy into an ultimate packaging powerhouse!

Features:

 Color displayed Touch Panel + Stable Reliable PLC with Dual axis output high accuracy, thus the Bagging machine can final all steps in one-time, including bag Forming, filling, sealing, printing and cutting.
 Air and electric control are separated, less noisy and more stable.
 Panasonic Servo to drive pulley, two belts working at the same time, offering enough friction to pull film, less sliding, nicer bag and the belts will be longer life.
 External Film Holder assemblies with Screw inside, the film roll is fixed in center mandatory, no need extra adjustment, saving time.
 Adopts Motor to track the film. Operator can tune and center the film in Touch Panel directly. Automatic Tracking system is available to choose too.
 Most of electrical parts and pneumatic parts are protected, avoid dusty to damage the parts.
 Whole machine is made of SUS#304, including thick enough Stainless-steel tube and film bracket. Not SUS#201 or covered Iron. Thus the machine is stronger, longer life and more rustproof.
SPECIFICATIONS OF Twin Type Vertical Form Fill Seal Machine P2520.2
Speed
5-100 bags/min/each side, max 200bpm in total  (Depends on bag size, film feature and spec)
Languages
Default English or Chinese. For else Multiple languages, please specify when ordering.
Air consumption
0.4~0.6 m 3/ min, 0.6 Mpa
Voltage & Power
220V, 8KW
Touch Screen
7 inch Color displayed Touch Screen
Film Material
Laminated film, such as OPP/CPP, OPP/PE, MST/PE, PET/PE, etc
Film Thickness
50~80μm
Film width
520mm Max.
Finished bag length
50~300 mm
Finished bag width
80~250 mm
Machine frame
Stainless steel 304
90Net weight
950kgs
Machine dimension
1550*2320*1480mm(LxWxH)
