Steelo Pack Stand Up Bag Block Bottom Bag Packing machine Pet food, snack food
Home » Products » VFFS Packing Machine » Quad seal bag » Steelo Pack Stand Up Bag Block Bottom Bag Packing machine Pet food, snack food
Share to:

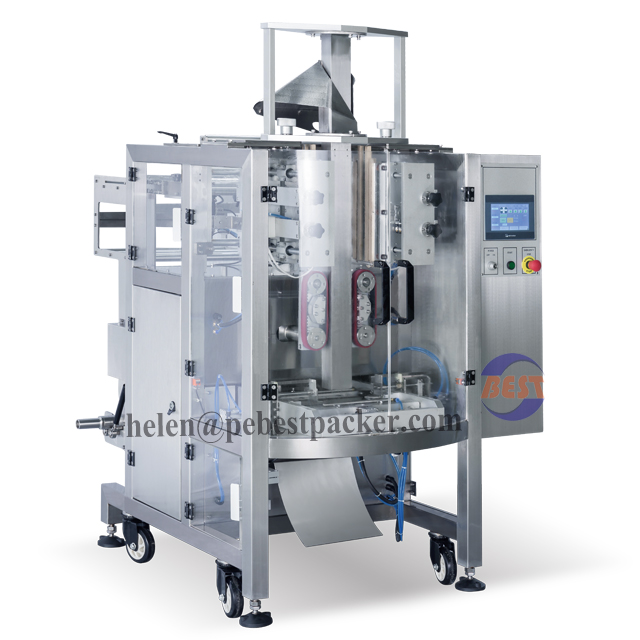

Steelo Pack Stand Up Bag Block Bottom Bag Packing machine Pet food, snack food

Block Bottom Bag Packing Machine can make bags, which is versatile attention-grabbing design that is very popular in the packaging industry, most notably in coffee, IQF, pet food, candy, and snacks. This bag holds its shape well on the shelf and can support heavier fills of products. With the addition of a degassing valve, it becomes the perfect solution for fresh roasted coffee.

Quantity:
  • Q-520
  • Baixida
  • Q-520

Steelo Pack Stand Up Bag Block Bottom Bag Packing machine Pet food, snack food

Block Bottom Bag Packing Machine can make bags, which is versatile attention-grabbing design that is very popular in the packaging industry, most notably in coffee, IQF, pet food, candy, and snacks. This bag holds its shape well on the shelf and can support heavier fills of products. With the addition of a degassing valve, it becomes the perfect solution for fresh roasted coffee.

SPECIFICATIONS OF Steelo Pack Confection Packaging machine  Q520
Speed
15-60 bags/min (Depends on bag size, film feature and spec)
Languages
Default English or Chinese. For else Multiple languages, please specify when ordering.
Air consumption
0.3 m 3/ min, 0.6 Mpa
Voltage & Power
220V, 5KW
Touch Screen
7 inch Color displayed Touch Screen
Film Material
Laminated film, such as OPP/CPP, OPP/PE, MST/PE, PET/PE, etc
Film Thickness
50~80μm
Film width
280~520 mm
Finished bag length
80~350 mm
Machine frame
Stainless steel 304
Net weight
800kgs
Machine dimension
1248*1570*2020mm (LxWxH)

Features

 Servo-drive film transport system
 Servo-drive, intermittent motion end seal jaws
 PLC and touch screen operation interface with choice of languages and access restriction feature.
 Exact alerting to prevent product to be jammed between the jaws.
 Photocell for centering of printing.
 Data printer (hot stamp) is automatically set.
 Stainless steel as standard version for excellent durability and sanitation.
