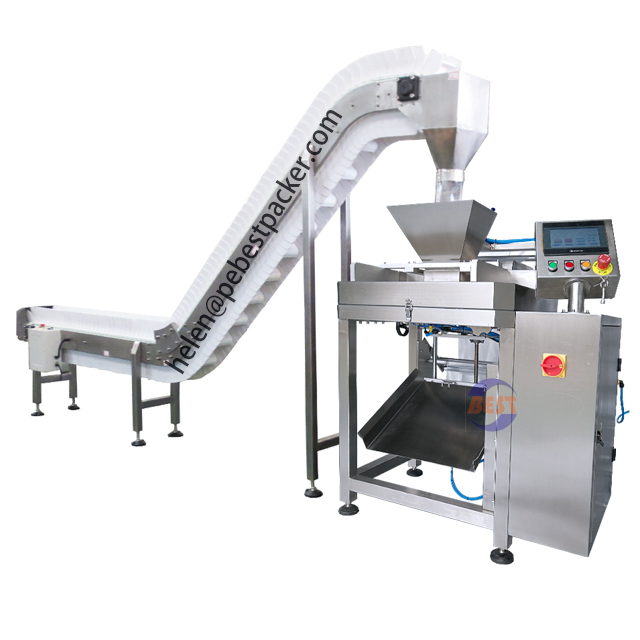

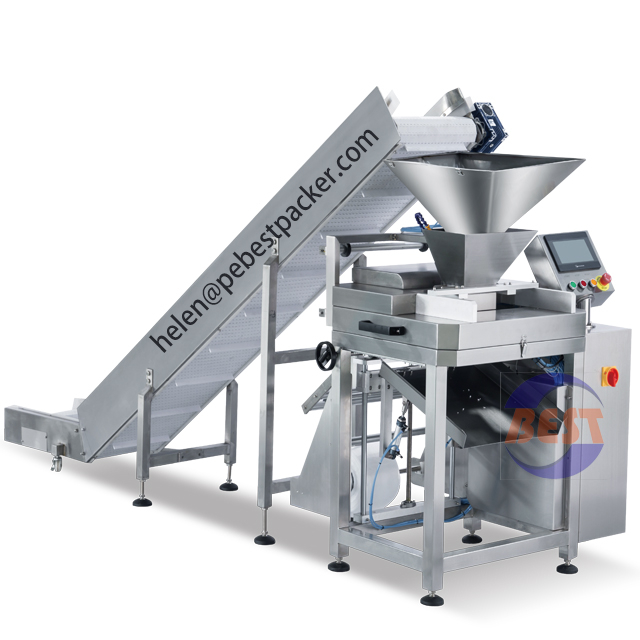

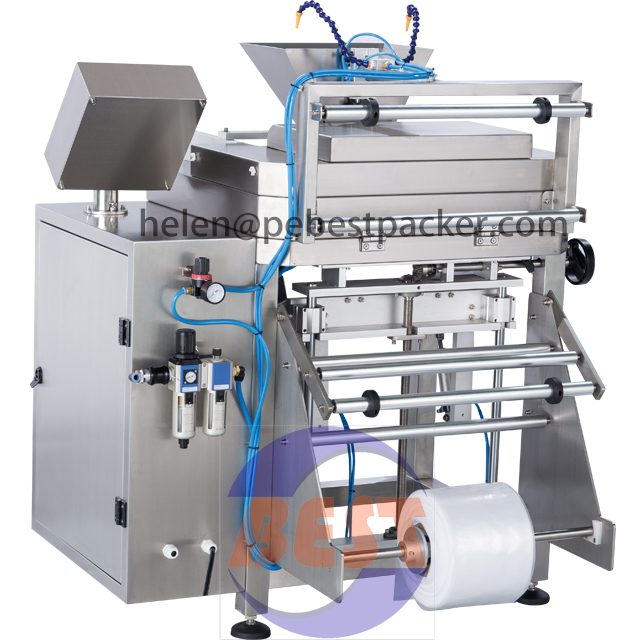

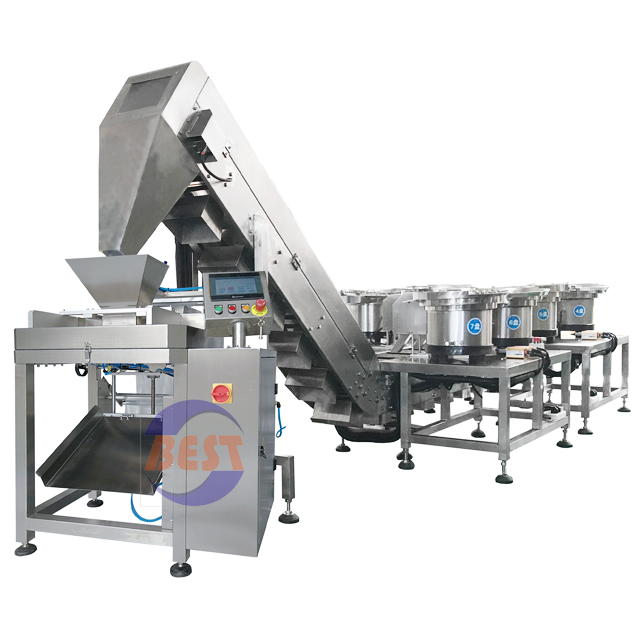

Hand Filling Semi-Automatic Packing Machine System with Buckets Elevator Conveyor by HDPE LDPE tube film
Special to use Tubular film. No back seaing & No Former tube.
Bucket Conveyor- semi-auto type system, filling by hand.
Special for non-flowing products and the one can't be weighted automatically, such as Traditional Chinese Medicine herbs, fresh berry, etc.
SPECIFICATIONS OF TUBULAR FILM FFS MACHINE TF-350 | |||
Speed | 4-15bags/min (Depends on bag size, film feature and spec) | ||
Languages | Default English or Chinese. For else Multiple languages, please specify when ordering. | ||
Air consumption | 4-6kg/cm,0.3m3/min | ||
Voltage & Power | 220V, 700W | ||
Touch Screen | 7 inch Color displayed Touch Screen | ||
Film Material | Tubular Film with PE or laminated film | ||
Film Thickness | 30~120μm | ||
Finished bag size | L=80~500mm, W=80~350mm | ||
Machine frame | Stainless steel 304 | ||
Net weight | 165kgs | ||
Machine dimension | 1075×1050×1130mm (LxWxH) |
Full 304sus building material;
Compact design to save space;
Tool-free install, dismantle and clean;
Easy operation and low maintenance;
Coarse and fine feeding material control;
Different administrator levels management;
Touch screen control system;
Free parameter adjusting during running;
No pre-made bags
One machine for many bag sizes
Space saving
Many lengths from one single roll
Inside clean bag
