| Quantity: | |
|---|---|

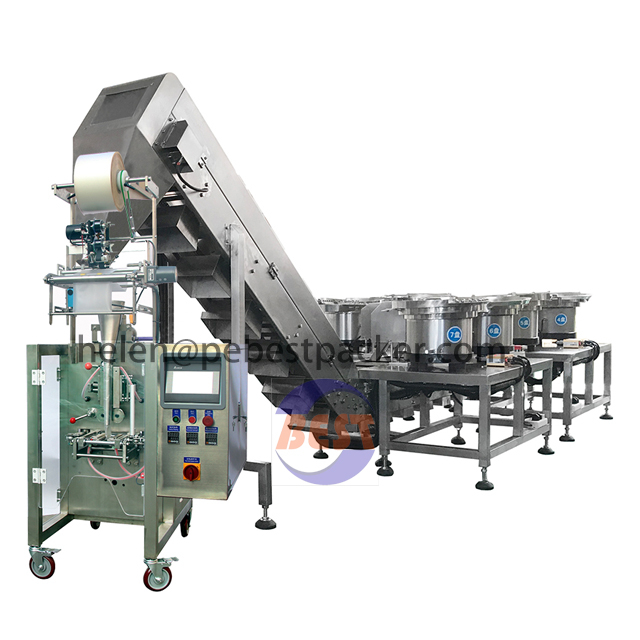

Application
Suitable to pack regular products and which need to count numbers, such as candy, medicine, screws, nuts, buttons, components, tools, plastic items. It is widely used in Household Electrical appliance industry and food processing industry.
Optional Device:
Chain bags, tear notch, Round hole punch, special bag shape punch device, etc
Parts Brand:
Touch Screen: Delta, Taiwan
PLC: Delta, Taiwan
Step Motor: SKD
Temperature controller: Autonics, Korea
Relay, Circuit Breaker and AC contactor: Schneid, France
Solid Relay: Fotek, Taiwan
Motor: GPG, Taiwan
SPECIFICATIONS | |||
Speed | 20-65bags/min | ||
Film Material | Laminated film, such as PP/PE, PP/AL/PE, Paper/PE, etc | ||
Film Width | Max 300mm | ||
Finished bag type | Pillow bag | 3-side sealed bag | 4-side seal bag |
Bag size | W:30-150 mm, | W:30-140 mm, | W:30-120 mm, |
Languages | Default English or Chinese. For else Multiple languages, please specify when ordering. | ||
Voltage & Power | 220V, 1500W | 220V, 1500W | 220V, 1500W |
Touch Screen | 7 inch Color displayed Touch Screen | ||
Machine frame | Stainless steel 304 | ||
Net weight | 220kgs | ||
Machine dimension | 1010×730×1780mm (LxWxH) | ||
