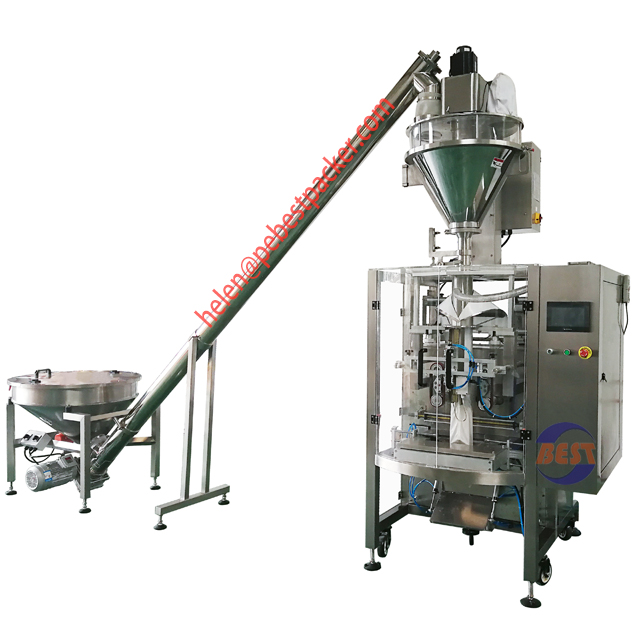

Collar Type Pouch Packing Machine Atta Curry Chili Turmeric Powder Wheat Flour Packaging Machine

Collar type pouch packing machine, fitted with auger filler are used to pack Sticky, non flowing and fine powders like, Milk Powder, Maida, Gram Flour, Wheat Flour, Coffee Powder, Powdered Spices, Chili Powder, Turmeric Powder, Maize Flour, Pharmaceutical Powders etc. VFFS 520 as sample, it can be synchronized with Auger filling system and can pack up to 2 kg.

Quantity:
  • AFP520
  • Baixida
  • AFP520

Collar Type Pouch Packing Machine Atta Curry Chili Turmeric Powder Wheat Flour Packaging Machine

Collar type pouch packing machine, fitted with auger filler are used to pack Sticky, non flowing and fine powders like, Milk Powder, Maida, Gram Flour, Wheat Flour, Coffee Powder, Powdered Spices, Chili Powder, Turmeric Powder, Maize Flour, Pharmaceutical Powders etc.
The Packing Machine is vertical electro-pneumatic packaging machine. This machine automatically forms a pouch, fills it with a product and then seals and then separates the "filled and sealed Pouch". The Collar type automatic pouch Machine is suitable for all kinds of free flow powder Products. Taking VFFS 520 as sample, it can be synchronized with Auger filling system and can pack up to 2 kg. Of products in center sealed pouches. It uses a single roll of packing film The Machine is fitted with Collar Type Former Pipe unit that; convert flat packing film into vertically sealed tube; which is ultimately converted in to filled & sealed pouches. Horizontal Sealers act like opening & closing jaws to carry out horizontal sealing.


Chilli Powder Packing machine Featuers:

1. Pneumatic Gusseting Device
2. Filled Pouch Conveyer (Take off Conveyor)
3. Euro or Round Hole punching Unit
4. Hopper level sensor device (Minimum Material Level Sensor Device)
SPECIFICATIONS OF Chilli Powder Packing machine P520.2
Measuring Method
Auger Screw filling machine
Weigh Range
10-2000gram
Speed
5-80 bags/min (Depends on bag size, film feature and spec)
Languages
Default English or Chinese. For else Multiple languages, please specify when ordering.
Air consumption
0.2~0.3 m 3/ min, 0.6 Mpa
Voltage & Power
220V, 4KW
Touch Screen
7 inch Color displayed Touch Screen
Film Material
Laminated film, such as OPP/CPP, OPP/PE, MST/PE, PET/PE, etc
Film Thickness
50~80μm
Film width
520mm Max.
Finished bag length
50~300 mm
Finished bag width
80~250 mm
Machine frame
Stainless steel 304
Net weight
450kgs
Machine dimension
1550*1160*1480mm(LxWxH)
