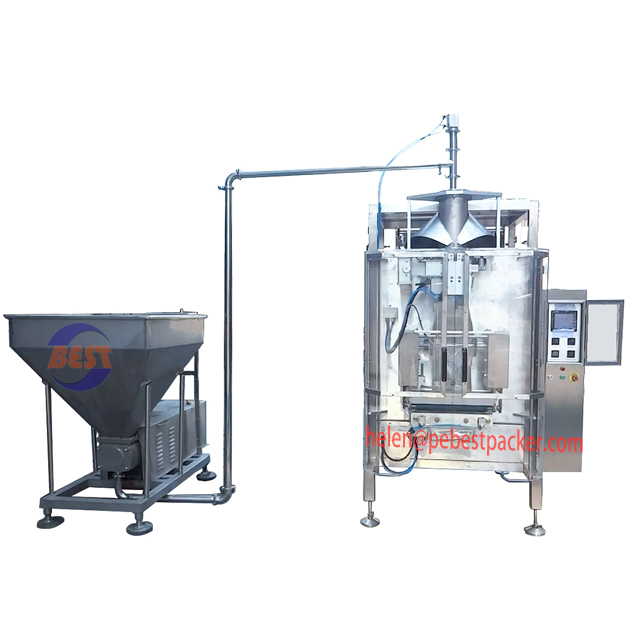

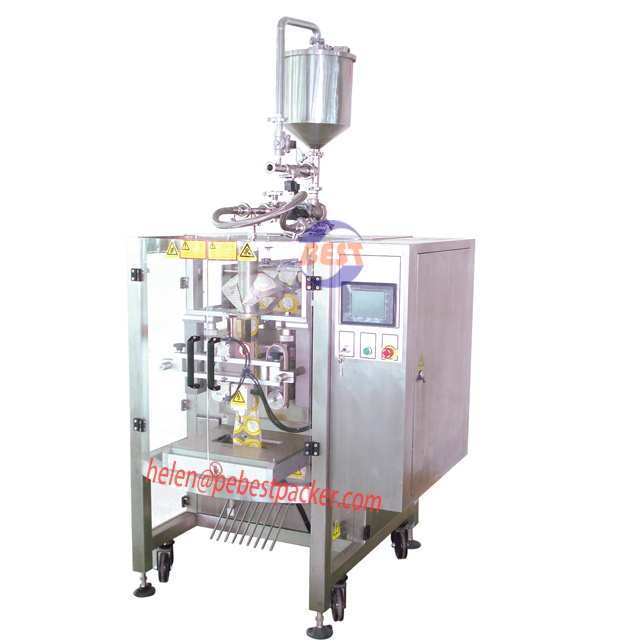

Catsup Mayonnaise Packing Machine Mustard Salad Dressings Liquid in bags Packaging
With sealing pressures higher than typically applied on vertical form fill seal machines General machines are used to package:
Catsup, Mayonnaise, Mustard, Salad Dressings
Cheese sauce, Chili, Stews, Soups
Chocolate sauce
Guacamole
Mashed Potatoes
Freezer Pops
Fruit Toppings, Pie Fillings
Water- Potable, Sterilized
Bleach
Greases
Freezer Gels
Ink
Lotions
Polishing compounds
Shampoo
SPECIFICATIONS OF LIQUID FILLING PACKING MACHINE P620.1 |

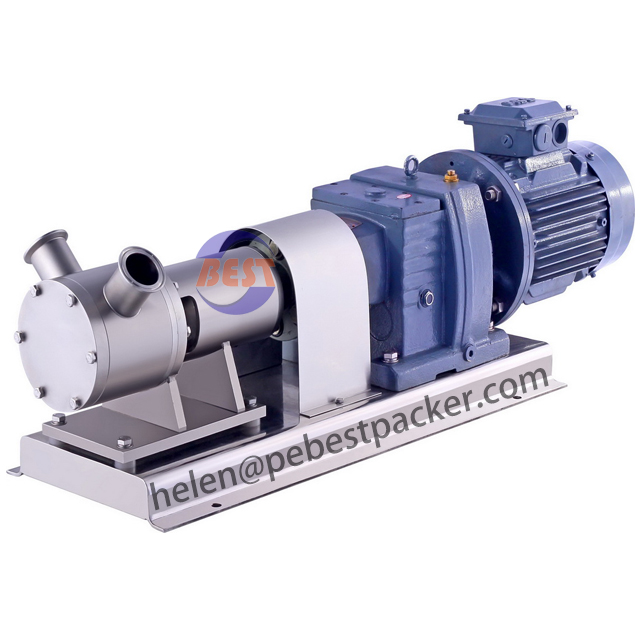

Filling machine | Piston Pump, Sin Pump, Servo Metering Pump, etc |
1Weight Range | 5-3000ml (depending on the Weigher model) |
| 15-60 bags/min (Depends on bag size, film feature and spec) |
Languages | Default English or Chinese. For else Multiple languages, please specify when ordering. |
Air consumption | 0.4~0.45 m 3/ min, 0.6 Mpa |
| 220V, 4KW |
Touch Screen | 7 inch Color displayed Touch Screen |
Film Material | Laminated film, such as OPP/CPP, OPP/PE, MST/PE, PET/PE, etc |
| 50~100μm |
Film width | 620mm Max. |
Finished bag length | 50-380 mm |
Finished bag width | 110-300 mm |
7Machine frame | Stainless steel 304 |
Net weight | 600kgs |
Machine dimension | 1600*1350*1680mm (LxWxH) |
